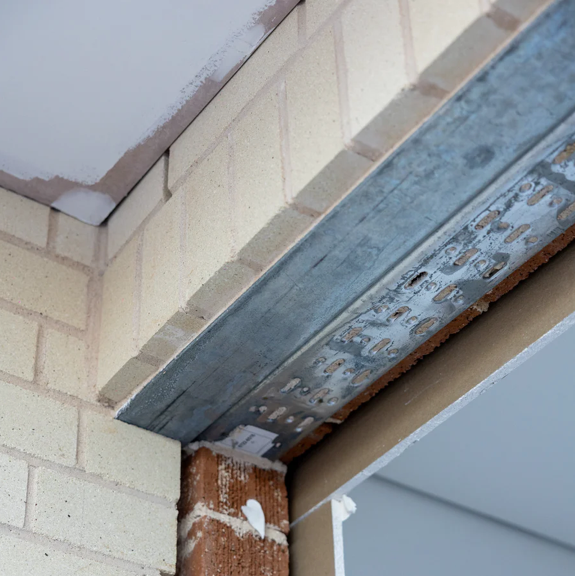

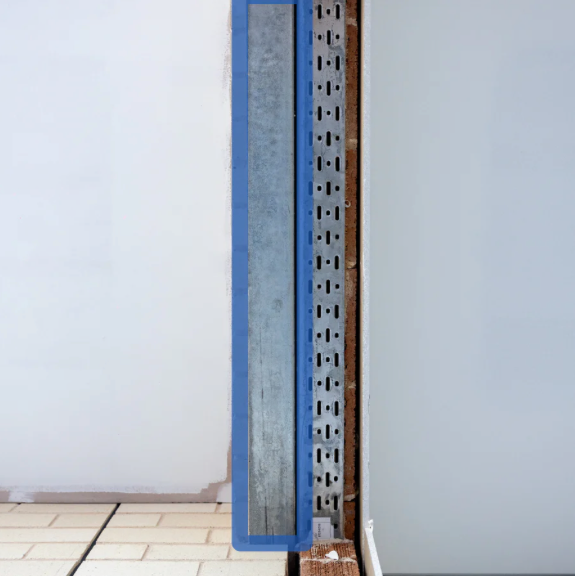

Smart Angle™ - Galvanised Steel Lintels (Double Ribbed) - Galvanised light weight lintels to support brickwork structure openings.

100 x 100 x 6.0 - Safe load Table

150 x 100 x 6.0 - Safe load Table

 Note:

1. a minimum of three courses of bricks must be laid above the lintel beam.

2. Load limited by deflection of 1/600 span.

3. Yielding stress fy=235 Mpa, tensile strength fu=375Mpa for both legs
4. Calculate bar length is span+150mm each end.

Notes on Safe Load Tables for Budabar B Bars

The Buda B and R bars are imported from China, material used is Q235B, and here Q stands for yielding.
According to PRC National Standard GB700-88(previous version GB700-79 part A3 & C3), the minimum yielding point is 235Mpa for thicknesses less than 17mm, tensile strength is between 375-400MPa.

• The B and R bars are simply supported at both ends.
• The B and R bars loaded such that the load acts vertically and equally on both sides of the web.
• Loads given are total (allowable) loads including lintel and brickwork.
• UDL loads are constant along the length of the bar.
• Point loads act at mid-span.
• 150mm minimum bearing support on to brickwork.
• Hot-dip galvanising to AS / NZS 4680:2006.
• Loads are in accordance with AS / NZS 1170.1:2002.
