• Proudly Australian Designed and made to Australian Standards

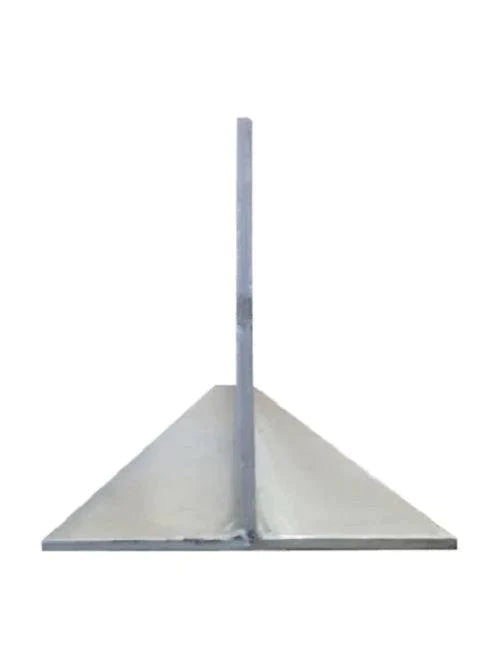

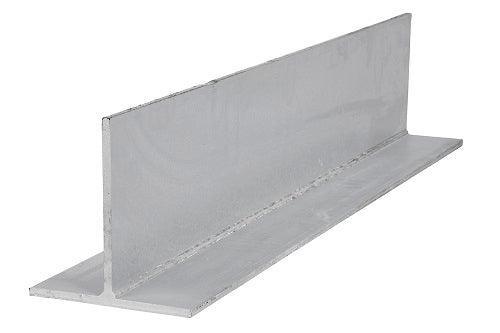

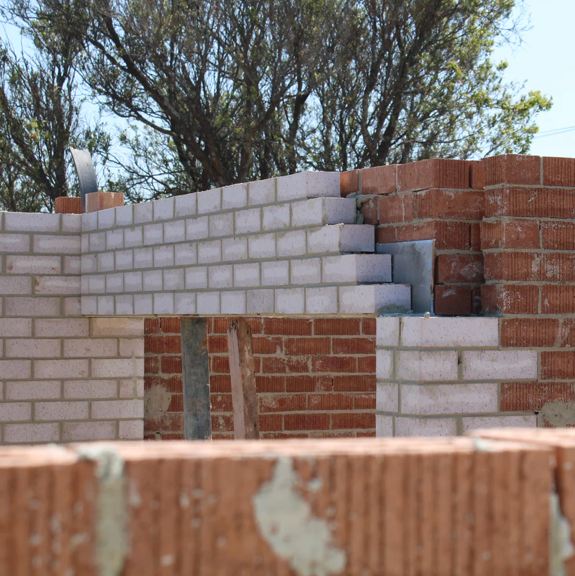

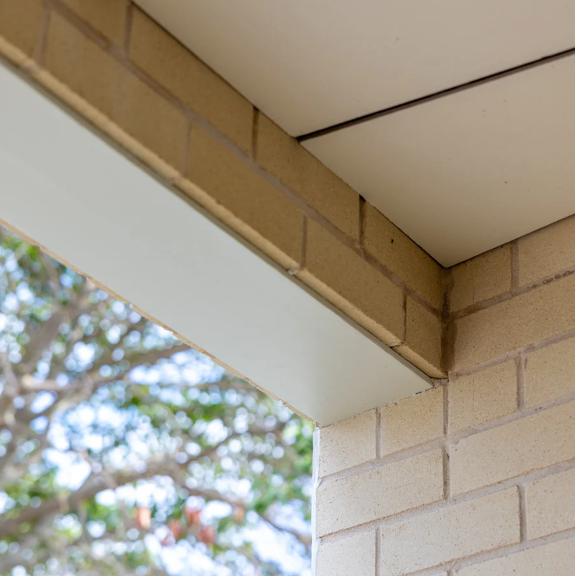

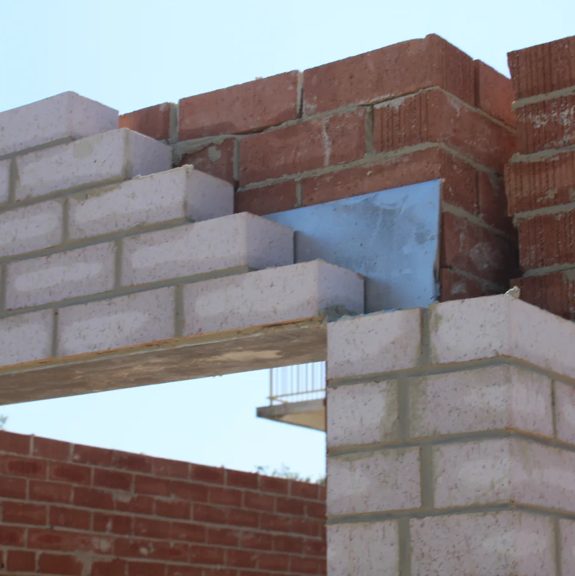

The Galvanised Smart T-Bar™ is an Australian designed lightweight lintel used for supporting brickwork over openings. Typically used for double brick with no cavity, some common uses include garage door openings. It is a fully welded bar and is not reliant upon composite action.

We also have other smart T-Bar™ sizes available. Please contact our sales department for more information.

Section Properties

Budabar T bars - Safe load tables

Notes on Safe Load Tables for Budabar-T-Bars

The Buda-T-Bar is imported from China, material used is Q235B, Q235 material is in accordance with PRC standard GB 700(previous version GB700-79 part A3 & C3), and here Q stands for yielding. According to PRC
National Standard GB700-88, the minimum yielding point is 235Mpa for thicknesses less than 17mm, tensile strength is between 375-400MPa, E=200~210 GPa

• The Buda-T-Bar is simply supported at both ends.
• The Buda-T-Bar is loaded such that the load acts vertically and equally on both sides of the web.
• The Buda-T-Bar is considered as being laterally unrestrained for the full span length.
• UDL loads are constant along the length of the bar.
• Point loads act at mid-span.
• 150mm minimum bearing support on to brickwork.
• Hot-dip galvanising to AS / NZS 4680:2006.
• Loads are in accordance with AS / NZS 1170.1:2002.

Note:

1. a minimum of three courses of bricks must be laid above the lintel beam.

2. Load limited by deflection of 1/500 span.

3. Yielding stress fy=235 Mpa, tensile strength fu=375Mpa for both web and flange.
4. Mass per metre calculation is based on 7850kg/m^3.
5. Calculate bar length is span+150mm each end.
