Smart Lintel™ Galvanised Steel Double Ribbed Brick Lintel - 100mm x 100mm x 6mm

SMART LINTEL™ - GALVANISED STEEL (DOUBLE RIBBED) - 100MM X 100MM X 6MM - Network Steel
SMART LINTEL™ - GALVANISED STEEL (DOUBLE RIBBED) - 100MM X 100MM X 6MM - Network Steel

Smart Lintel™ Galvanised Steel Double Ribbed Brick Lintel - 100mm x 100mm x 6mm

Proudly Australian Designed and made to Australian Standards
  • Reliable shipping across QLD
  • Proudly Australian designed and made to Australian standards
  • Hot Dip Galvanised Steel
  • In stock, ready to ship
  • Backordered, shipping soon
Size
Length
Regular price $34.19
/
Tax included. Shipping calculated at checkout.
Proudly Australian Designed and made to Australian Standards

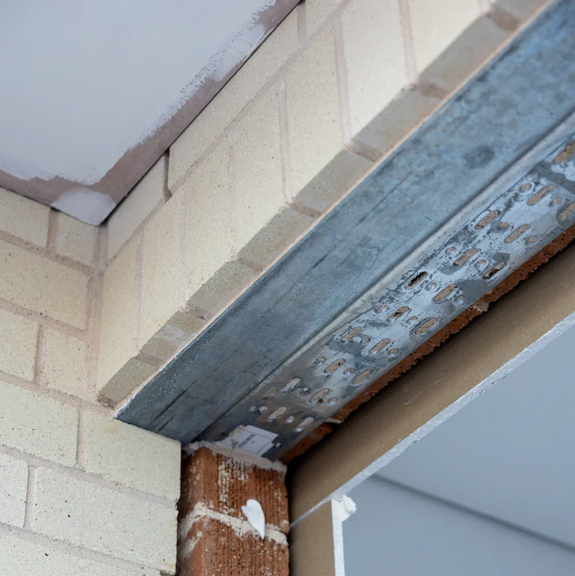

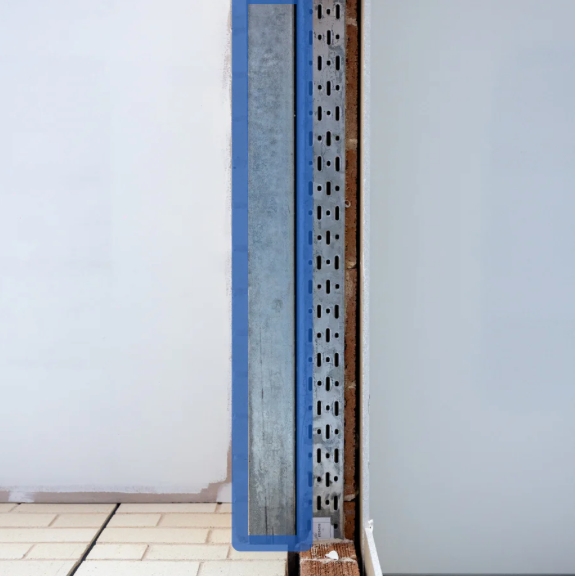

Smart Angle™ - Galvanised Steel Lintels (Double Ribbed) - Galvanised light weight lintels to support brickwork structure openings.

  • Hot Dip Galvanised to AS/NZ 4680:2006
  • R3 Durability Rating in accordance with AS/NZS 2699:2002
  • Light weight when compared to traditional Concrete/Brick Lintels
  • Available in a range of sizes.

Download Brochure

Lintel Load Tables: Download PDF

To find our more information on this product and other products visit the Brochures

Section Properties
 DIMENSIONS    SECTION PROPERTIES
  Mass per Metre  Gross Section Area About x-axis   About y-axis   About n-axis About p-axis
Designation     Ag Ix Zx  Iy Zy  In Ip
  kg/m   mm^2 10^6 mm^4 10^3 mm^3 10^6 mm^4  10^3 mm^3  10^6 mm^4  10^6 mm^4
100 x 100 x 6 B-Bar 8.19 1164  1.83 25.84  0.46 11.97 1.14  1.14
150 x 100 x 6 B-bar  10.53   1464 4.05  39.4  0.72 13.39 3.49 1.29

100 x 100 x 6.0 - Safe load Table

 Angle  Span (mm)  900  1200  1500  1800  2100  2400  2700
 100 x 100 x 6.0  Bar Length(mm)  1200  1500  1800  2100  2400  2700 3000
 9.42kg/m  UDL (kg/m)  2550  1520  995  601  390  260  182
   Point Load(kg)  1350  1035  805  655  535  415  325

150 x 100 x 6.0 - Safe load Table

 Angle  Span (mm)  1800  2100  2400  2700  3000  3300  3600  4000
 150 x 100 x 6.0 Bar Length(mm)   2100  2400  2700  3000  3300  3600  3900  4300
 11.78kg/m  UDL (kg/m)  1320  945  705  525  375  275  210  155
   Point Load(kg)  1301  1050  875  758  645  555  495 415

 Note:

  1. a minimum of three courses of bricks must be laid above the lintel beam.
  2. Load limited by deflection of 1/600 span.
  3. Yielding stress fy=235 Mpa, tensile strength fu=375Mpa for both legs
  4. Calculate bar length is span+150mm each end.

Notes on Safe Load Tables for Budabar B Bars

The Buda B and R bars are imported from China, material used is Q235B, and here Q stands for yielding.
According to PRC National Standard GB700-88(previous version GB700-79 part A3 & C3), the minimum yielding point is 235Mpa for thicknesses less than 17mm, tensile strength is between 375-400MPa.

  • The B and R bars are simply supported at both ends.
  • The B and R bars loaded such that the load acts vertically and equally on both sides of the web.
  • Loads given are total (allowable) loads including lintel and brickwork.
  • UDL loads are constant along the length of the bar.
  • Point loads act at mid-span.
  • 150mm minimum bearing support on to brickwork.
  • Hot-dip galvanising to AS / NZS 4680:2006.
  • Loads are in accordance with AS / NZS 1170.1:2002.

Our inventory: 99% of our stock is consistently available. If an item is unavailable, it will either be marked as out of stock online or we will promptly notify you.

Shipping costs: To determine delivery costs, please input your suburb and postal code on the shopping cart page.

Our goal is to deliver orders placed before 12pm within Brisbane Metro the following business day via a Ute or Crane Truck.

Orders outside of Brisbane metro can expect delivery 1 to 2 days later. Currently, we only deliver this product to Brisbane, Sunshine Coast to Gympie Region, and Gold Coast down to selected areas in Northern NSW.

Input your postal code in the shopping cart to check if we deliver to your location.

We do provide free pick up if you prefer to collect the items yourself or arrange your own transportation.

Please be aware that truck deliveries with a crane can only lift materials off the truck and into the boundary of your front or back yard. We cannot guarantee a specific location or lift the material above the ground floor (first floor or higher) due to various factors.
